From unknown to understood: Phoenix pipeline inspection and mapping

One platform. Two capabilities. Phoenix sets a new standard in pipeline inspection and mapping. Its modular design and advanced technology make it suitable for a wide range of sectors — including oil and gas, water and energy infrastructure — wherever reliable internal pipeline understanding is required.

The Phoenix Smart Pigging System, developed by iNPIPE PRODUCTS™, combines high accuracy dimensional mapping with high definition visual inspection in a single platform. This dual capability, enhanced by AI-driven predictive analysis, provides operators with actionable insights that go beyond traditional inspection approaches.

A recent project in the water sector illustrates its adaptability. Faced with a 4.2 km ductile iron main with no existing documentation, a civil engineering firm required a complete internal survey. Phoenix delivered a turnkey solution: bespoke launch and recovery methods, accurate dimensional mapping, and high resolution internal imagery — transforming an undocumented pipeline into a fully understood asset. Designed and deployed by iNPIPE PRODUCTS™, the system provided the client with comprehensive insights in a single pass.

At the heart of Phoenix is its debris mapping tool, which integrates 360° sensor technology with HD video capture. The system delivers dimensional measurements accurate to 0.1mm at 5mm intervals, while simultaneously tracking pig position throughout the pipeline. The combined data set produces a comprehensive condition profile, invaluable for identifying features such as joints, valve seats and seals.

Phoenix software also identifies and quantifies debris, pinpointing its exact location and calculating volume. This enables targeted cleaning programmes and predictive maintenance planning. This capability is particularly valuable in oil and gas pipelines, where deposits such as wax, scale, sand and black powder can reduce efficiency, accelerate corrosion and damage downstream equipment. By accurately locating and quantifying debris, Phoenix enables targeted cleaning campaigns that improve flow assurance and support long term integrity management. With integrated AI, Phoenix can validate cleaning frequencies and forecast debris accumulation — empowering operators to optimise tool selection and pigging regimes.

The system is modular and fully configurable for each application. Options include a rigid metal-bodied cup pig or a flexible foam pig for negotiating tighter bends and more complex geometries. Scalable for use in pipelines from 600mm to 3200mm in diameter, Phoenix ensures accuracy and reliability across a wide range of operating environments.

Every Phoenix system is designed, manufactured, and tested in the UK by iNPIPE PRODUCTS™, backed by over four decades of pigging expertise. The company provides comprehensive support from initial design through to successful deployment — anywhere in the world. The result is a robust inspection platform that delivers faster turnaround of actionable data, greater measurement accuracy and broader adaptability than conventional single function tools.

By combining precision, versatility and predictive intelligence, Phoenix enables operators across multiple sectors to move confidently from the unknown to the understood.

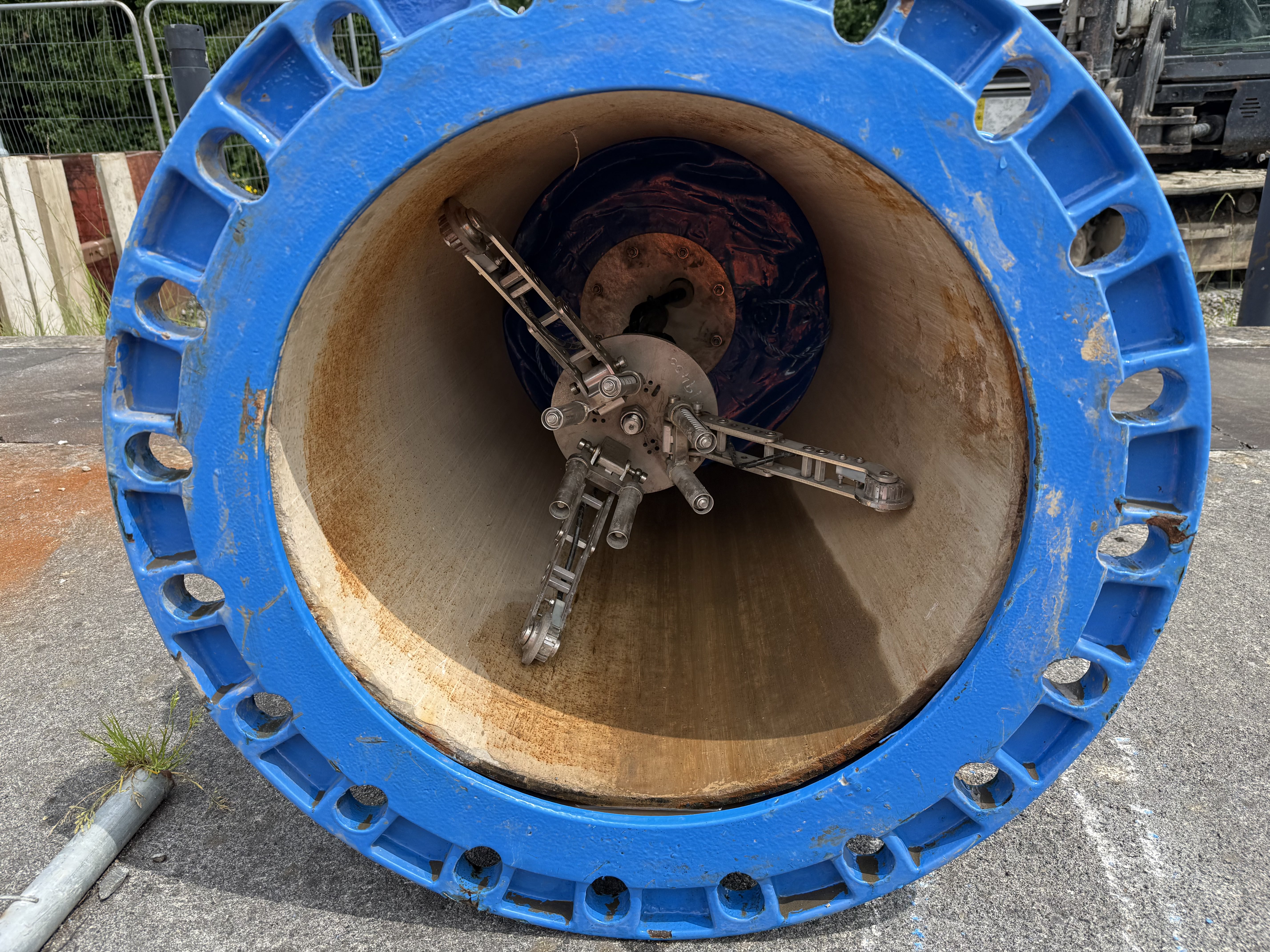

Pre-loaded cassette

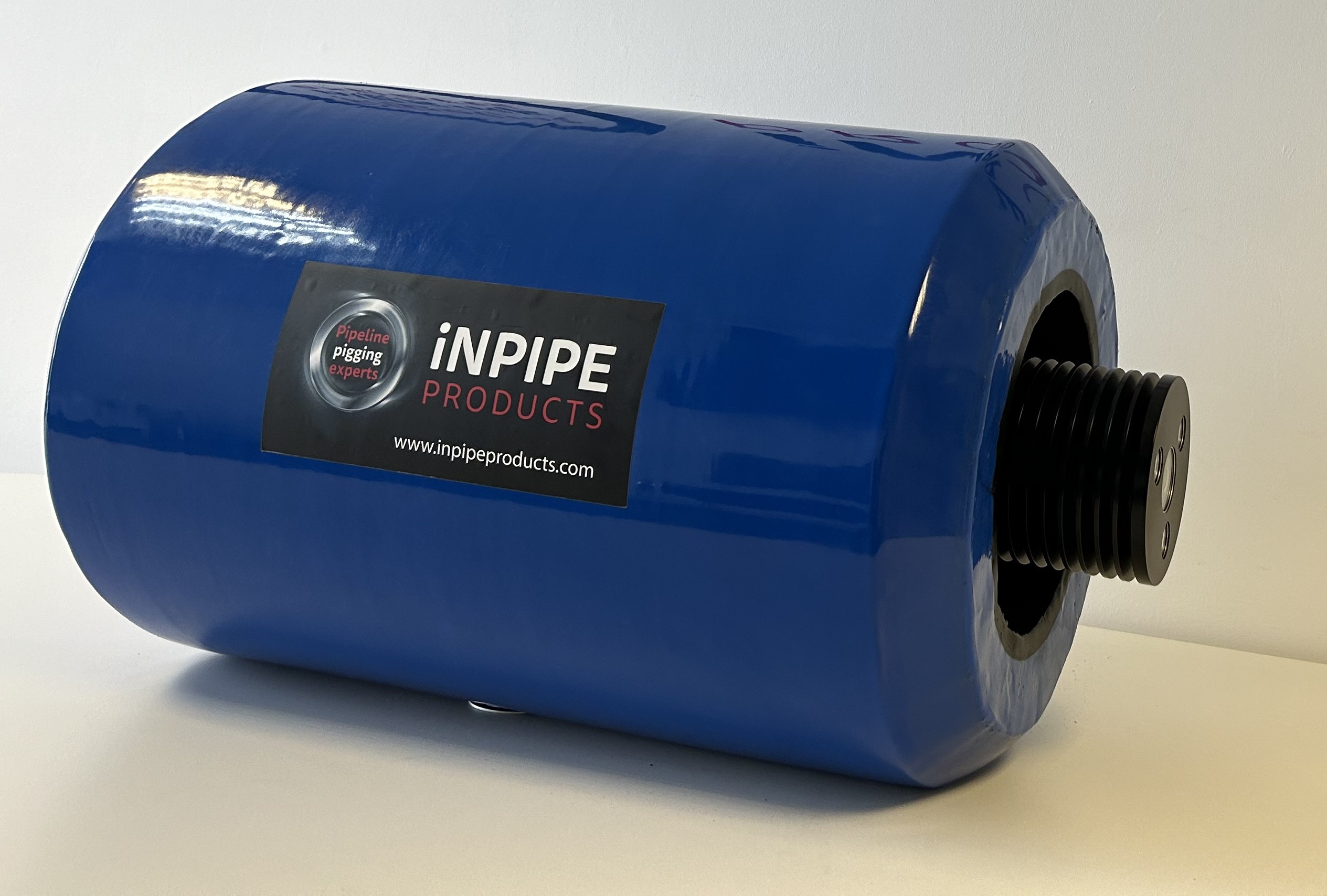

Phoenix vision camera

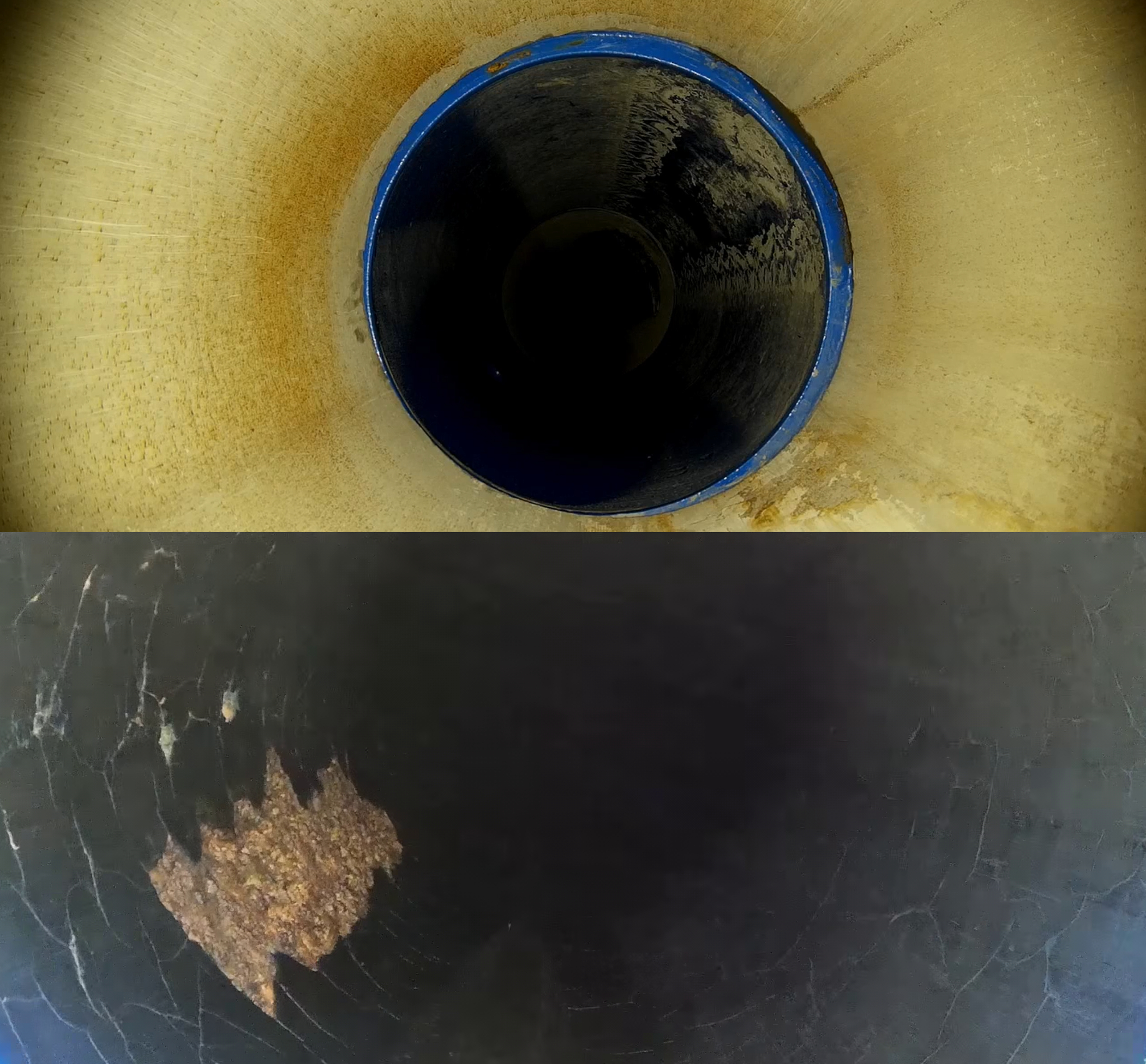

Internal high definition video inspection

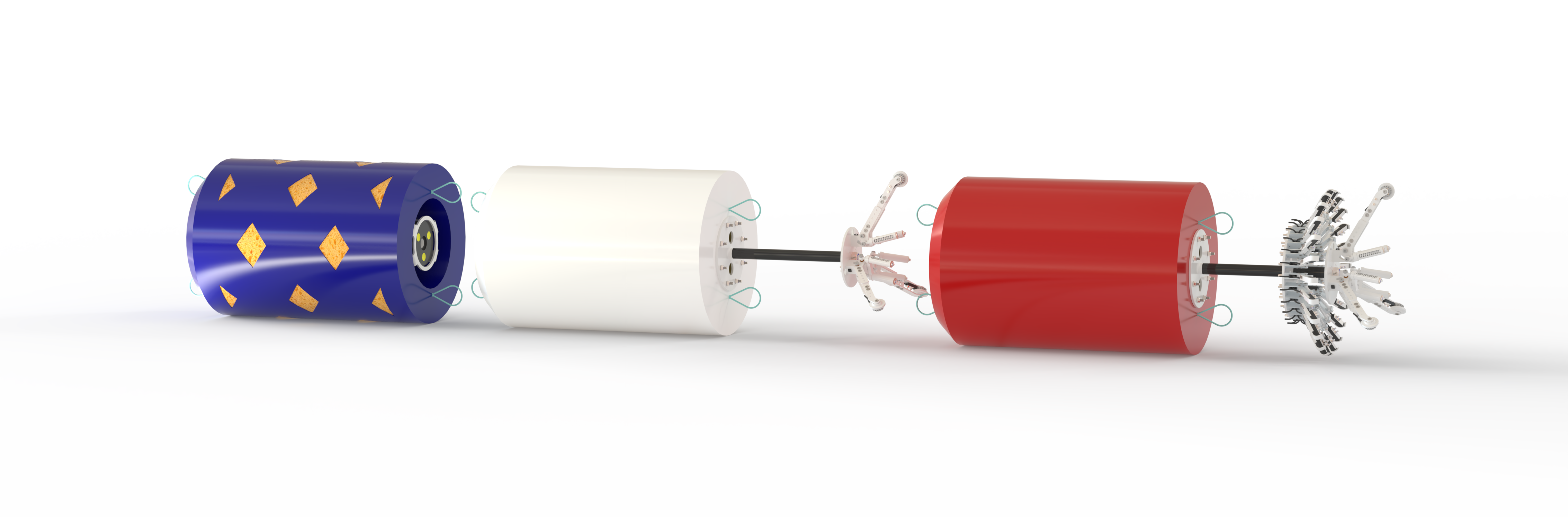

Phoenix flexible modular options
