What Is Intelligent Pigging?

Intelligent pigging, or smart pigging, is an advanced pipeline inspection technique using specialized tools (pigs) equipped with sensors to collect, record, and analyse data on the internal condition of a pipeline, such as corrosion, cracks, and deformation. These tools provide high-resolution data on the pipeline's integrity, including metal loss, wall thickness, and precise anomaly locations, often without stopping operations.

Challenges of intelligent pigging in Nigeria

Intelligent pigging in Nigeria faces significant challenges related to the age and design of existing infrastructure, high costs, and a shortage of skilled local personnel.

Key challenges include:

• Unpiggable Pipeline Infrastructure: Many pipelines in Nigeria were not originally designed to be inspected with intelligent pigs. Common design issues include:

  • Absence or insufficient pig launcher and receiver facilities.
  • Bore restrictions, multiple diameter changes, and reduced-port valves.
  • Tight or short-radius bends and unbarred tees.

• High Capital and Operational Costs: Advanced intelligent pigs and associated services are expensive, with costs for a single run estimated to run into hundreds of thousands of dollars. This financial burden can lead some operators to defer or conduct less frequent inspections, increasing pipeline failure risks.

• Skill and Expertise Shortage: Nigeria experiences a shortage of skilled technicians to operate the complex pigging equipment and expert data analysts to interpret the inspection results accurately. This often necessitates hiring foreign experts and resources, which further increases project costs.

• Unknown Pipeline Conditions and Data Gaps: A lack of accurate and complete historical documentation, often due to the age of the pipelines and poor record-keeping, creates uncertainty about their internal conditions (e.g., actual diameter, locations of defects). This uncertainty complicates planning and increases the risk of a pig getting stuck.

Operational and Logistical Difficulties:

• Debris Accumulation: Significant buildup of wax, scale, or other debris can obstruct the pipeline and cause pigs to slow down, stall, or become stuck.

• Flow Conditions: Maintaining the optimal flow rate and pressure required for effective pig transit can be challenging, especially in complex pipeline networks.

• Security and Vandalism: The high prevalence of pipeline vandalism and oil theft in certain regions of Nigeria adds an extra layer of operational risk and security challenge to inspection activities.

Despite these challenges, innovations in advanced inline inspection (ILI) tools and the use of low-cost, locally developed smart pigs are helping operators in Nigeria to better manage pipeline integrity and comply with regulatory requirements from agencies like the Nigerian Upstream Petroleum Regulatory Commission (NUPRC).

Key aspects of intelligent pigging:

• Technology Used: Smart pigs utilize Magnetic Flux Leakage (MFL) (detects metal loss) or Ultrasonic Testing (UT) (measures wall thickness) to inspect pipes.

• Data Collection: The pigs, also known as Intelligent Line Inspection (ILI) tools, record data on corrosion, pitting, weld anomalies, dents, gouges, and ovalities.

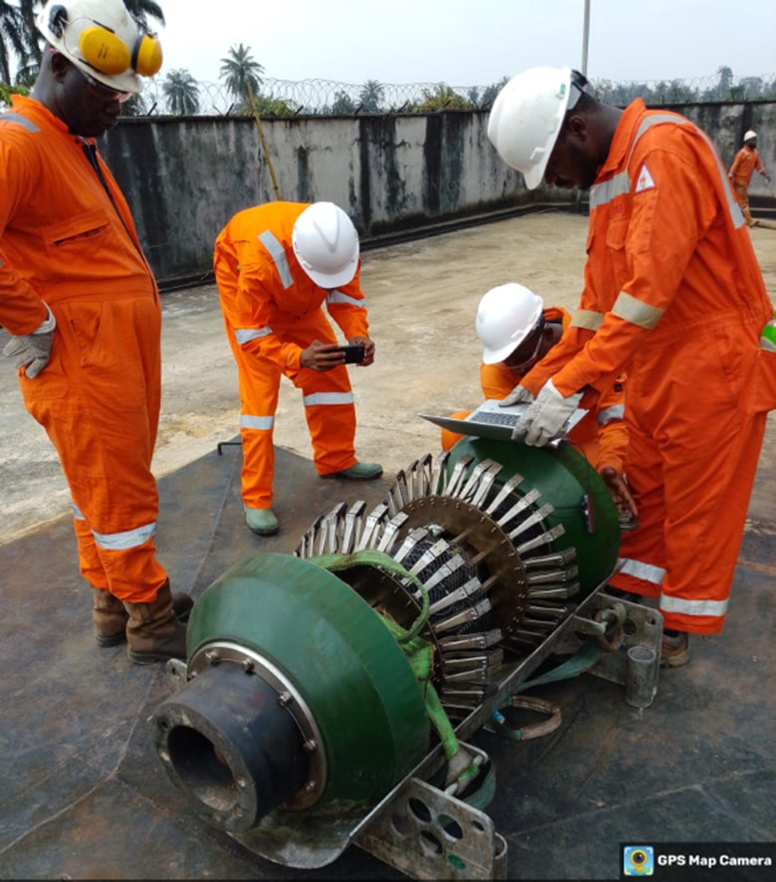

• Procedure: A smart pig is inserted into the pipeline and propelled by the product flow, recording data throughout its journey. The data is later downloaded and analysed, often creating a 3D mapping of the pipeline's condition.

• Purpose: The primary goal is to ensure pipeline safety, comply with regulations, and provide information for predictive maintenance.

Advantages of Intelligent Pigging:

• Detects Anomalies: Accurately identifies potential hazards like structural defects, bending, or damage before they cause failure.

• Comprehensive Assessment: Covers 360° of the internal pipe wall.

• Minimal Downtime: Allows for, as noted on Torch Energy Services' website, inspection while the pipeline is in use.

• Improved Efficiency: Provides detailed data that allows operators to prioritize repairs, reducing overall maintenance costs.

In essence, intelligent pigging serves as an "MRI scan" for pipelines, detecting, locating, and characterizing potential problems to ensure integrity.

In Nigeria, intelligent pigging is primarily applied in the oil and gas industry to perform crucial inspection and integrity management tasks for the country's extensive pipeline network. These applications ensure pipeline safety, environmental protection, and regulatory compliance.

Key applications of intelligent pigging in Nigeria include:

• Corrosion and Metal Loss Detection: Intelligent pigs equipped with technologies like Magnetic Flux Leakage (MFL) and Ultrasonic Testing (UT) detect internal and external corrosion, pitting, and metal loss in pipelines, which is critical given the age of much of Nigeria's infrastructure.

• Defect Identification and Sizing: Smart pigs gather data to identify, size, and locate various defects such as cracks, dents, ovalities, and mechanical damage to the pipeline structure.

• Pipeline Integrity Assessment: The detailed data collected is used for comprehensive pipeline integrity management, allowing operators to make data-driven decisions on maintenance, repairs, and potential replacements, thereby extending the pipeline's lifespan.

• Pre-Inspection Cleaning Verification: Before an intelligent inspection run, utility pigs are used to clean the pipeline. The intelligent pigging data helps verify the degree of cleanliness achieved and ensures accurate inspection results.

• Regulatory Compliance: Regulatory bodies such as the Nigerian Upstream Petroleum Regulatory Commission (NUPRC) often mandate periodic integrity assessments using intelligent pigging or other approved non-destructive methods, making it an essential application for legal operation.

• Minimizing Downtime: By proactively identifying issues, operators can schedule maintenance effectively, preventing emergency shutdowns and significantly reducing operational downtime and financial losses.

• Subsea and Onshore Installations: Intelligent pigging solutions are applied to both onshore and offshore pipelines, covering the diverse operational terrain found in the Niger Delta and other regions.

• Low-cost Local Solutions: Research and development efforts are underway in Nigeria to create low-cost, locally sourced intelligent pigs using Wi-Fi modules and pressure sensors to detect leakages and defects, making the technology more accessible.
